3-Phase Small Automatic Decanter Palm Oil Centrifuge For Virgin Olive Oil

Brand Name : Peony

Model Number : PDCS

Certification : ISO

Place of Origin : China

MOQ : 1 set

Price : USD25000-145000/SET FOB SHANGHAI

Payment Terms : TT,.LC, Western Union

Supply Ability : 60 sets per month

Delivery Time : 75-90 days after advanced payment

Packaging Details : Standard export package, polywood, fumigated wood, filmed

Application : liquid-liquid-solid 3 phase separation

Operation : Automatic continuous

MOC : Stainless Steel，titanium

Bearing : SKF, NSK as optional

PLC : Optional

Conveyor : Tungsten carbide

Product Name : Tricanter Centrifuge Similar With PANX750CS

Keyword : Sedimantation Centrifuge

Keyword1 : palm oil tricanter centrifuge

Keyword2 : Three phase industrial centrifuge

Contact Now

Product Description
Application
Plam oil centrifuge is suitable for plam oil dehydration and slag, after separating plam oil reach national standard.
3-Phase Small Automatic Decanter Palm Oil Centrifuge For Virgin Olive Oil
1.The integral design of the machine adopt international advanced type of structure design in recent years, motor puts beside, cover flat on flame structure, it causes that the machine maintenance is more convenient, low noise, small vibration, easy installation. 2.Stainless steel cover adopts enclosed design, peculiar smell gas of the machine in the work is not be leaked. It leads that the work environment satisfies the requirements. 3.Drum material adopts stainless steel 304/SS316L/DSS2205. 4.Vibration system adopts drum high modulus of elasticity of absorbing vibration damping device. Compared to previous models, the machine vibration is greatly reduced. 5.Electrical control adopts double frequency automatic control system 6.The other main components adopt joint venture or wholly-owned or domestic famous brand products.
3-Phase Small Automatic Decanter Palm Oil Centrifuge For Virgin Olive Oil
3-Phase Small Automatic Decanter Palm Oil Centrifuge For Virgin Olive Oil
And our model PDCS-21-W is similar with A L F A L A V A L PANX750CS,with actual feedback from our client.
Beach angle:20°
Our tricanter centrifuge is for continuous separation of solids from liquids such as thickening and dewatering sludge.
With disc separator,nozzler separator,our model is Disc separator PDSP15000-N,similar with PAS 710.
It is used for clarifying and purifying at same time also used to clarify and purify the similar materials. This is a new type of partial discharge and high speed centrifugal separator.
3-Phase Small Automatic Decanter Palm Oil Centrifuge For Virgin Olive Oil
Our decanter centrifuge is applicable in chemical, pharmaceutical, food industries, etc.,for the solution of filtering and dewatering projects. After oil pressing, the palm oil containing water and solid will enter tricanter for separation. The oil phase can be treated using a purifier, and the oil content in the water phase can be recovery with a nozzle separator. Some of my customers in this field will put the oil after pressing in a tank, leave it for a period of time, it will form 3 layers, solid layer at the bottom, water layer in the middle, and oil layer on the top; then use a nozzle separator to treat the water phase to recover the oil.
Disc centrifuge separator specially used for separate water and impurities from palm oil,get clear palm oil,after tricanter centrifuge.
Size Information
Model
Diameter(mm)
Speed(RPM)
G-force
Capacity(m3/h)
Main power(Kw)
Weight(Kgs)
PDCS-17
420
3300
2550
5~20
30/11
3610
PDCS-18
450
3300
2739
4~50
30/11
3655
PDCS-20
500
3200
2860
5~45
55/11
4213
PDCS-21
540
2800
2366
5~50
45/15
5290
Decanters with slow rotation speeds are normally based on horizontal separation technology. Decanter eusure optimum separation efficiency in the case of suspensions with a very high proportion of solid. They are also used for the extraction constituents from liquids and for concentrating, dewatering and classfying solids. Decanter design: Type: 3- phase separation Materials: use high-quality stainless steel for all product wetted areas. Bearings: SKF brand. A special selection and arrangement of bearings provides for long life and exceptional reliability. Wear protection: welded hard facing or spray coating, ceramic technology.
Reference standard 1. Main standard of the national machinery industry. JB/T502-2004 "spiral discharge sedimentation centrifuge" JB/T9095-1995 "centrifuge, separator forgings, welding conventional NDT technology standard" 2. The national main standard GB10894-89 "separation machinery noise sound power level measurement engineering method" Plam oil tircanter - decanter centrifuge machines' structure: 1. Drum; 2. Screw pusher; 3. Planetary gear differential; 4. Base; 5. Stainless steel cover; 6. Absorber; 7. Motor;
We provide the tricanter centrifuge and disc separation for olive oil,the structure and design is same as the PIERALISI Company model P1500/2000 in Italy.We are the only manufacturer of olive oil extraction in China. With the market for olive oil becoming the huge business opportunity, so I hope we have a chance to cooperate and expand the olive oil industry to achieve the all-win development. As the following advantages,our equipment is applicable in various industries all over the world. 1.60 years of professional separator manufacturing. 2. Import advanced processing equipment from abroad to ensure processing accuracy. 3. Have the certificate certified by a professional organization. 4. Before shipment,we will provide the drawing and spare parts free of charge for the model.After shipment,we will provide 12-month warranty period for clients. 5. Be able to issue the certificate of origin to reduce the tax at the customer's location. And more...
Product Description
3-Phase Small Automatic Decanter Palm Oil Centrifuge For Virgin Olive Oil

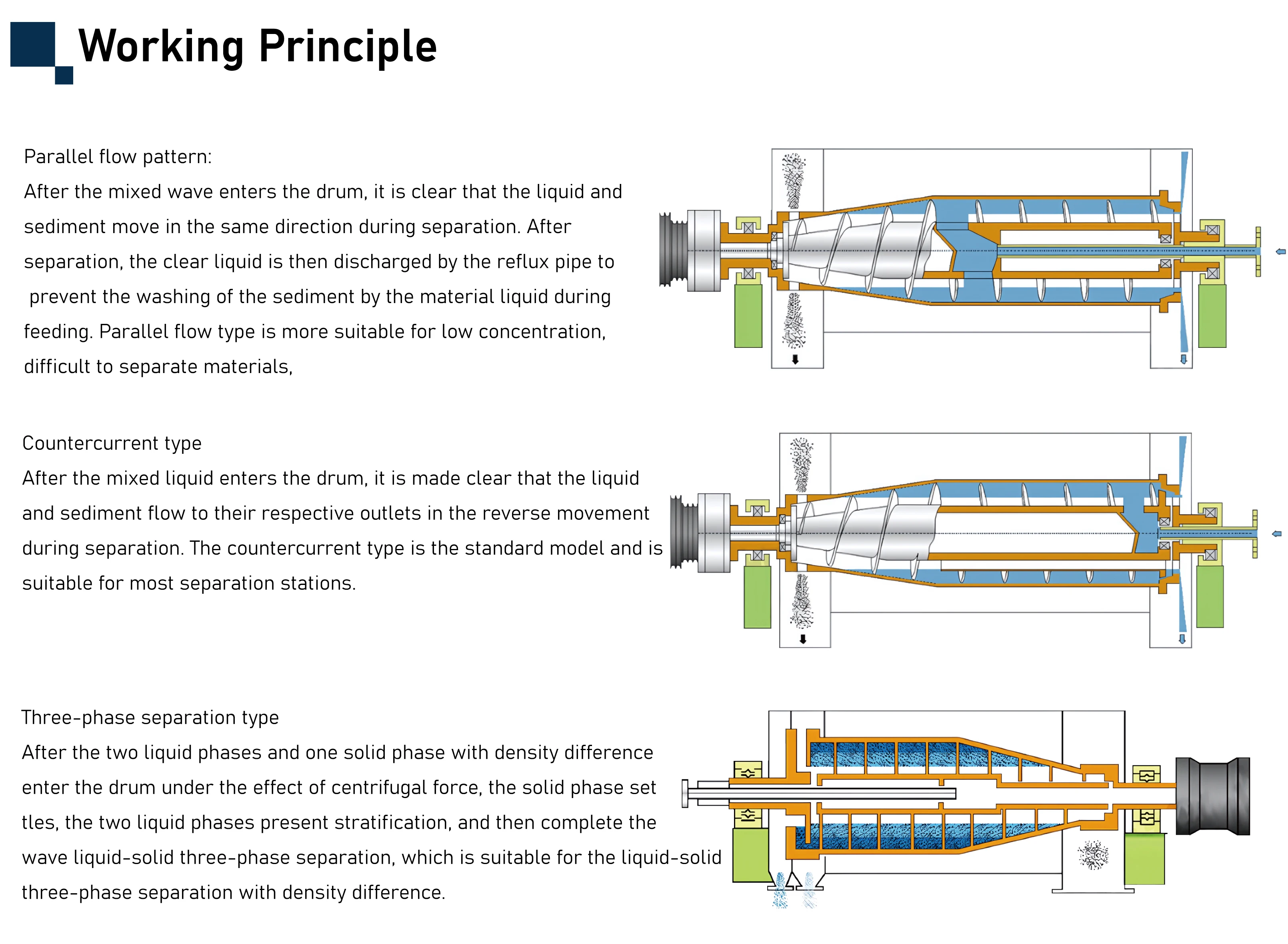

Decanter centrifuge is to use the principle of insolubility of heavy liquid, light liquid and solid phase with different density in the mixture to obtain different settling speeds under the action of centrifugal force field or gravity field, so as to achieve the separation, segregation or settling of solid particles in the liquid. Widely used in oil production and sewage treatment, it is the most popular equipment in the world.
Main motor power(kw)
Processing capability(m³/h)
LW-250*1000
11
0.5-3
LW-350*1460
22
3-12
LW-450*1800
30-45
6-20
LW-520*2130
45-75
12-30
LW-650*2275
75-110
25-35
LW-720*2665
110-160
45-100
LW-900*2700
160-220
50-110
LW-1000*2500
280
50-120
3-Phase Small Automatic Decanter Palm Oil Centrifuge For Virgin Olive Oil
-Double-motor double frequency conversion drive system, to achieve differential stepless adjustment and energy feedback -Spiral furnace blade: Surfacing hard alloy grinding -Drum cone discharge port: replacement of wear-resistant, corrosion-resistant ceramic alloy bushings -Electrical protection: overload, phase failure, torque protection. -Main and auxiliary inverters use a common DC bus, the role of the auxiliary motor is to generate electricity (power saving)
3-Phase Small Automatic Decanter Palm Oil Centrifuge For Virgin Olive Oil
3-Phase Small Automatic Decanter Palm Oil Centrifuge For Virgin Olive Oil
3-Phase Small Automatic Decanter Palm Oil Centrifuge For Virgin Olive Oil
The adaptability of the material is large, the solid phase particle size range can be separated (0.002-2mm), and it can be separated as usual when the solid phase particle size is uneven

Material selection

The material of the part of the centrifuge contacting the liquid can be chosen from austenitic stainless steel (321, 316...), Hastelloy, titanium alloy or other corrosion-resistant materials. 904L, C2205), Hastelloy, titanium alloy or other corrosion-resistant materials.

Special configuration

The following configurations are available according to customer requirements : 1.Frequency conversion +PLC control;
2.Vibration, main bearing temperature monitoring and protection system;
3.Feed speed control;
4.Drain breath liquid separation device;
5.Cycloidal gear, planetary gear, hydraulic differential three kinds of structure selection differential adjustment range is large, for different solid phase push torque transmission
3-Phase Small Automatic Decanter Palm Oil Centrifuge For Virgin Olive Oil
3-Phase Small Automatic Decanter Palm Oil Centrifuge For Virgin Olive Oil
Polyoxyethylene resin
Sulphate
Diatomite
Starch
Soy Protein
Peanut protein
Fruit juice
Ammonium acid
Barium carbonate
Barium sulfate
Titanium dioxide
Titanium dioxide
Ore
China clay
Vegetable oil
Citric acid
Waste oil purification
Washing water purification
Distiller's grains
Animal fat
Blood meal
Power plant sludge
Printing and dyeing sludge
Paper sludge
Car wash sludge
Sludge drilling mud
Coal flotation waste
Cryolite flotation liquid
Weather desulfurization sludge
Power plant sludge
Activated sludge
Ammonia sludge
3-Phase Small Automatic Decanter Palm Oil Centrifuge For Virgin Olive Oil
Company Profile
It is a professional enterprise engaged in the evaporating crystallization, drying, filtrating, and heat transferring, with the research and development and manufacturing of technical equipment, covering an area of 532800 square meters. Currently,there are 1580 employees.And we have fixed assets of 2 billion yuan and annual sales of 2.8 billion yuan.
The main products of the group include MVR evaporators, multi effect evaporators, centrifuges, reaction kettles,
crystallizers,heat exchangers, PILLOW PLATES, Roots compressors, with various supporting fluid equipment.The enterprise has got ISO9001/2015system certification, CE certification, ISO14001:2004 environmental management system certification, possesses A1,A2 pressure vessel manufacturing qualifications, A2 pressure vessel design qualifications, and owns over 100 invention patents and utility model patent technologies.
The company's product quality, advanced technology, and comprehensive after-sales service have been widely recognized around the world, with a high market share. Various series of centrifuges account for 60% of Chinese market and are exported to more than 60 countries and regions, including Germany, the United Kingdom, Italy, Denmark, Switzerland, the United States, Canada, Australia,Mexico, Brazil, Argentina, Chile, Colombia, Russia, Ukraine, Romania, India, Indonesia, Vietnam, Thailand, South Africa, Egypt,Cameroon, etc.
With the goal of "innovating products through technology, pursuing excellence in quality, serving customers with integrity and perfection", the company manufactures high-tech, highly automated, safe, and energy-saving equipment to become the best manufacturer of evaporation and fluid equipment in China.
3-Phase Small Automatic Decanter Palm Oil Centrifuge For Virgin Olive Oil
3-Phase Small Automatic Decanter Palm Oil Centrifuge For Virgin Olive Oil
Over the years with stron shrengh,good reputalion, srict quality management and high-.quality service system,has become a leading domestic famous brand and won the unanimous recogntion of the majorty of users.The products are exported to the United states, Germany,Spain, Brazil,Argentina, Russia,Indonesia, Vietnam, Thailand,Malaysia, Australia,lsrael Turkey and other pars othe word,and has estabished a wide customer network in China.
3-Phase Small Automatic Decanter Palm Oil Centrifuge For Virgin Olive Oil
